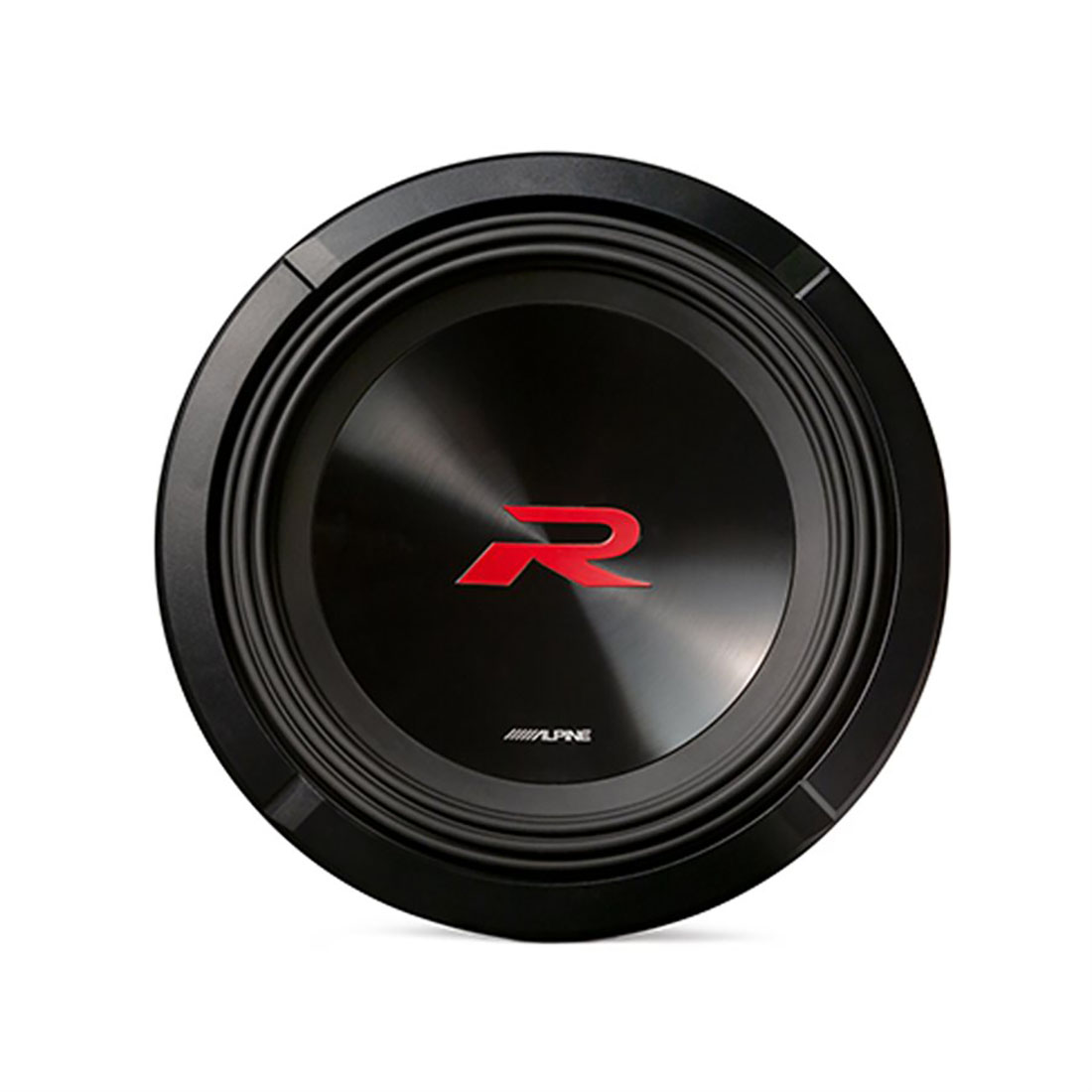

Alpine 12" Subwoofer 2+2 ohms

The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.
MSRP: $540.00
Manufacturer: Alpine
SKU: R2-W12D2
Features
  • 12-inch R-Series Subwoofer with Dual 2-Ohm Voice Coils
  • Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
  • Polypropylene/Ceramic Composite Dust Cap
  • Kevlar Reinforced Pulp Cone High-Performance subwoofers
  • Twist-Lock Grille Mount System
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • Large Double-Stacked Magnets
  • CTA-2031 Compliant
What’s in the box
  • Alpine 12" Sub Woofer 2+2 ohms

Get a 2025 Alpine Product Catalog — Add it to your order now

Specs

Speaker Size12”
750W RMS
2250W Peak Power Handling
Frequency Response24Hz-200Hz
Sensitivity (1W/1m)84.5dB
Nominal Impedance2 ohms
Voice Coil65mm
X-Max20mm
Magnet Weight144oz
Push-Type Speaker Terminals (Up to 8AWG Wire Size)



Dimensions

Mounting Depth6-1/2”
Cutout Size10-7/8”
