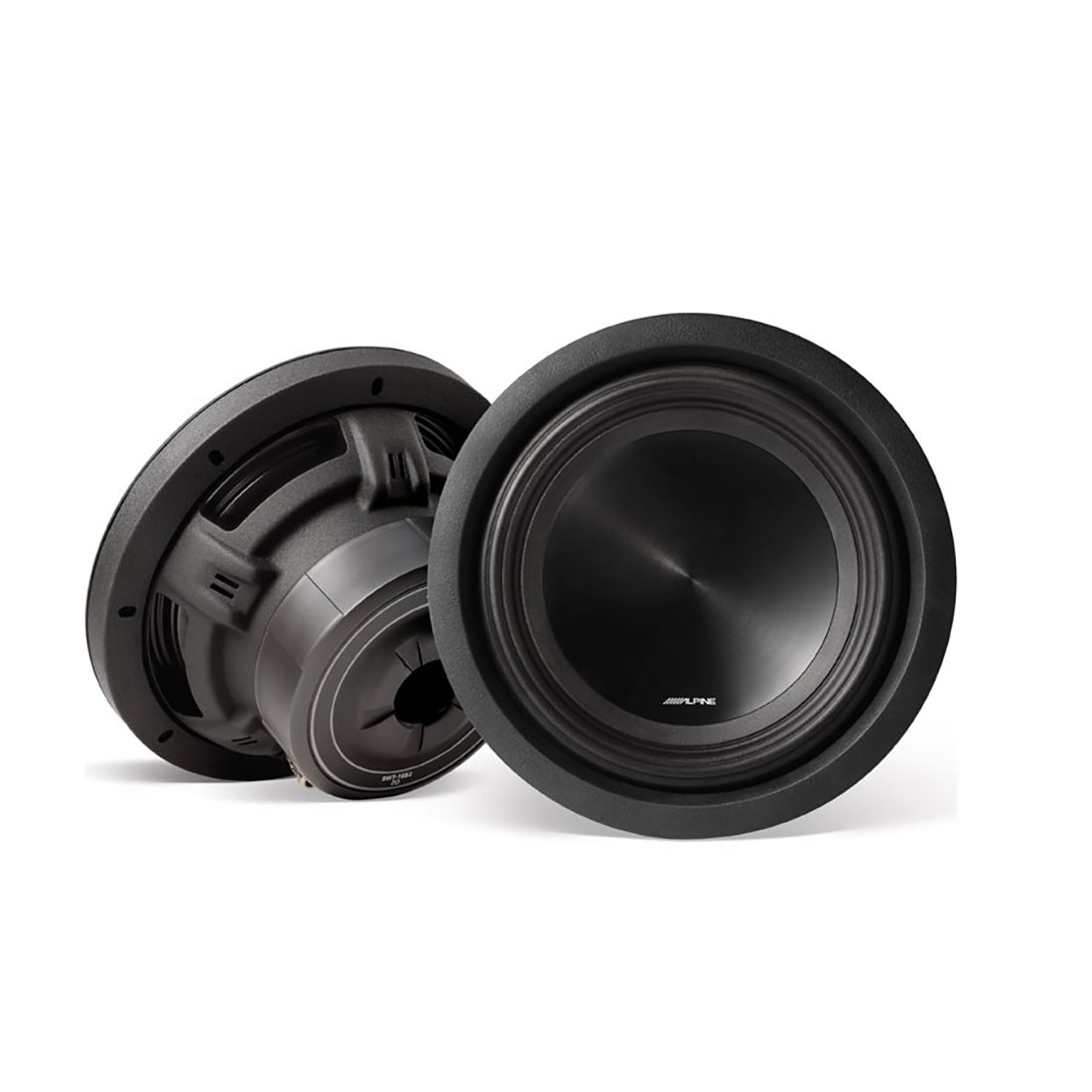

Alpine 10" Truck Subwoofer w/2-Ohm Voice Coils

Name: Alpine 10" Truck Subwoofer w/2-Ohm Voice Coils
SKU: SWT-10S2
Availability: InStock

Combining the intense low-bass performance and ground-shaking output of the traditional Type-R subwoofers in a thin package optimized for extremely small enclosures

MSRP: $300.00

Manufacturer: Alpine

SKU: SWT-10S2

Overview
Attachments

FEATURES
Diaphram

Material: Poly-Mica Dust Cap & Pulp-Kevlar
Design: 2-Piece Shallow Cone Structure

Surround

Material: Polyurethane Foam Surround
Design: H.A.M.R. Surround Technology

Spider

Material: Conex® Spider with Reinforced Layer Tinsel Leads
Design: Progressive

Voice Coil

Material: Spiral Cut Aluminum Former
Design: 65mm Voice Coil with High-Temp 4-Layer SVC Winding

Motor Structure

Pole Geometry: Compound Radius Curve
Configuration: Dual Flare Pole Vent with Airflow Back Plate

Frame

Material: High Strength Steel
Design: Perimeter Venting with Airflow Management System

Terminals

Layout: Push Terminals
Design: 8AWG

Gasket

Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)

TECH SPECS

Power Handling

CEA-2031 Power Rating: 350 Watts
Power Range: 100W - 350W
RMS Power Handling: 350 Watts
Peak Power Handling: 1000 Watts

Dimensions

Mounting Depth: 105.5 mm (4-3/16'')
Mounting Diameter: 227 mm (8-15/16'')
Displacement: -0.02 cu. ft.
Added Volume: +0.03 cu. ft.

General

Frequency Response: 30Hz - 200Hz

Get a 2025 Alpine Product Catalog — Add it to your order now

Product Files

MANUALS

SWT-10S2 Manual

OTHER FILES

Alpine 2026 Catalog

FEATURES
Diaphram

Material: Poly-Mica Dust Cap & Pulp-Kevlar
Design: 2-Piece Shallow Cone Structure

Surround

Material: Polyurethane Foam Surround
Design: H.A.M.R. Surround Technology

Spider

Material: Conex® Spider with Reinforced Layer Tinsel Leads
Design: Progressive

Voice Coil

Material: Spiral Cut Aluminum Former
Design: 65mm Voice Coil with High-Temp 4-Layer SVC Winding

Motor Structure

Pole Geometry: Compound Radius Curve
Configuration: Dual Flare Pole Vent with Airflow Back Plate

Frame

Material: High Strength Steel
Design: Perimeter Venting with Airflow Management System

Terminals

Layout: Push Terminals
Design: 8AWG

Gasket

Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)

TECH SPECS

Power Handling

CEA-2031 Power Rating: 350 Watts
Power Range: 100W - 350W
RMS Power Handling: 350 Watts
Peak Power Handling: 1000 Watts

Dimensions

Mounting Depth: 105.5 mm (4-3/16'')
Mounting Diameter: 227 mm (8-15/16'')
Displacement: -0.02 cu. ft.
Added Volume: +0.03 cu. ft.

General

Frequency Response: 30Hz - 200Hz

Get a 2025 Alpine Product Catalog — Add it to your order now
