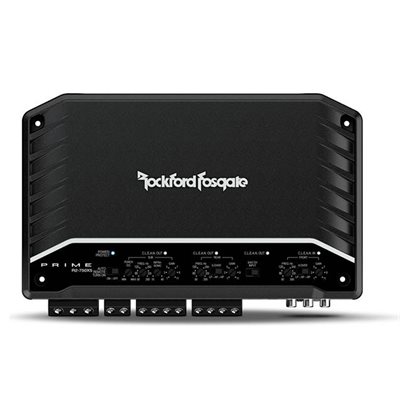

Rockford Prime 750W 5-Channel Amplifier
R2-750X5
Features
- Balanced Differential Inputs with RCA Pass Through Outputs
- High Level Input Capable
- Features C.L.E.A.N. Set-up
- Variable Input Gain adjustment level
- R.L.C. Remote Level Control
- Variable Infrasonic Filter
- Continuously Variable On Board Punch EQ
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Cast aluminum heat sink
- Full Range Class D
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 1 Year Warranty
Specs
- Number of Channels: 5
- Total Power: 750 Watts
- RMS Continuous Power:
- 50 Watts x 4 + 200 Watts x 1 @ 4Ω
- 100 Watts x 4 + 350 Watts x 1 @ 2Ω
- 200 Watts x 2 + N/A @ 4Ω Bridged/Mono
- Dynamic Power:
- 70 Watts x 4 + 241 Watts x 1 @ 4Ω
- 114 Watts x 4 + 426 Watts x 1 @ 2Ω
- 234 Watts x 2 + N/A @ 4Ω Bridged/Mono
- Bridgeable: Yes
- Frequency Response: 20 Hz - 20 kHz
- Input Sensitivity:
- Low-Level: 150 mV - 4 V
- High-Level: 450 mV - 12 V
- Circuit Topology Class: Class D
- Signal Input:
- Front Low-Level: 2 RCA
- Front High-Level: 4-Pin Molex
- Rear Low-Level: 2 RCA
- Rear High-Level: 4-Pin Molex
- Sub Low-Level: 2 RCA
- Sub High-Level: 4-Pin Molex
- Input Switch: 2/4/5 Input (works for RCA/Hi-Level inputs)
- Signal Output: N/A
- Tone Controls: 0 to +18 dB @ 45 Hz
- Crossover Controls:
- Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Sub Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse: 120 A
- Max. Current Draw (13.8V Sinewave): 71 A
- Size (H x W x D): 1.9” x 6.8” x 11.2”
